Deskbench Terminal PCB

Fig. 308 uz_per_deskbench_terminal PCB

Source

• uz_per_deskbench_terminal PCB repository

Revisions:

• Deskbench terminal PCB Rev01
• Deskbench terminal PCB Rev02

General description

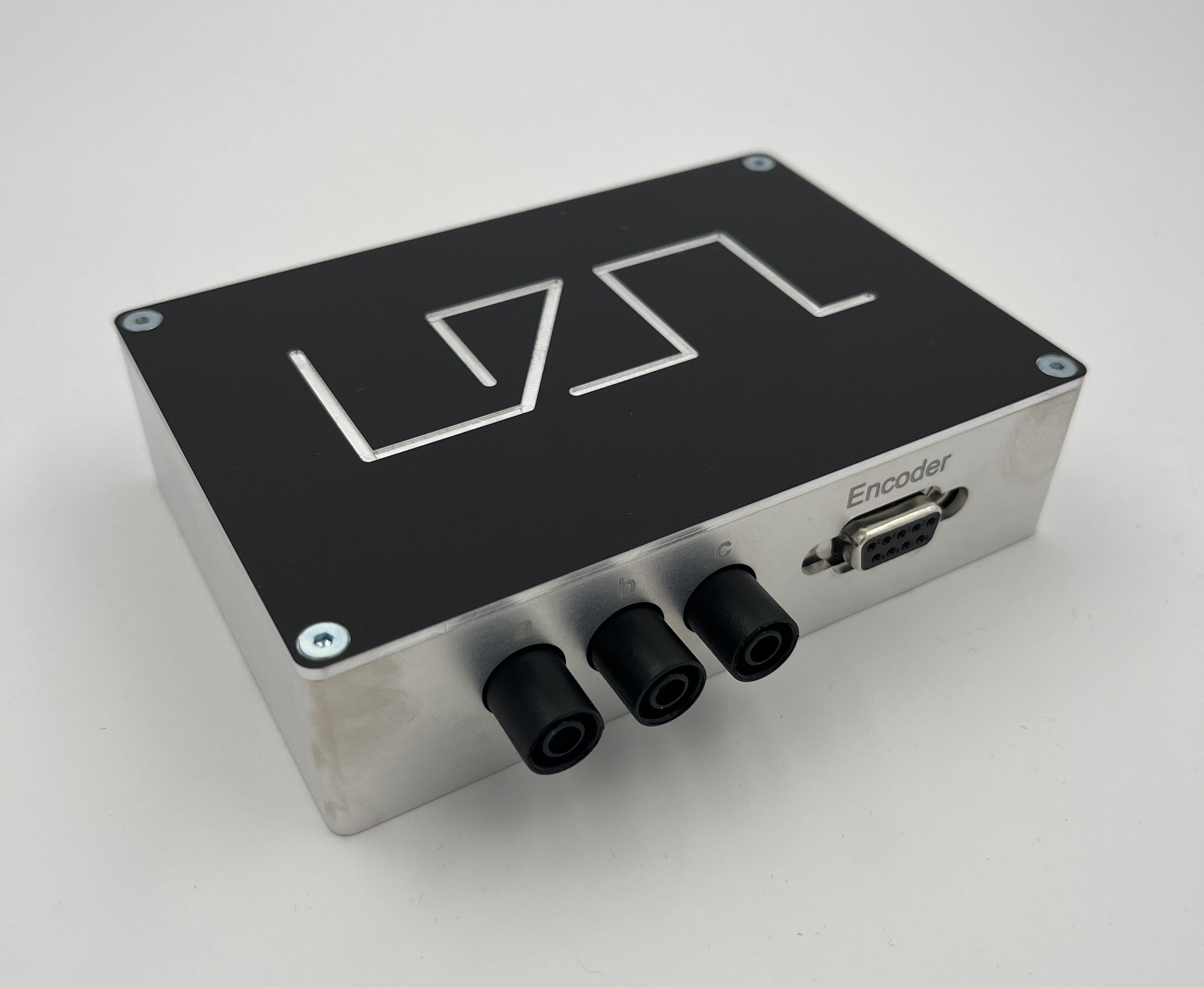

This PCB is designed to connect a 3-phase PMSM with a resolver or an absolute encoder to the Deskbench. The PCB is housed in an enclosure and serves as an interface between the Deskbench and an inverter, typically the Digital Inverter Rev03.

Designer

Designed by Dennis Hufnagel(TH Nürnberg), 04/2023
